Features

FitoClima ‘PLH’ walk-in plant growth rooms with sizes ranging from 5.000 liters of internal volume, up to 25.000 liters or custom designed dimensions specially developed for plant sciences.

With total control and great uniformity of environmental conditions, these chambers can simulate temperature, light, humidity, CO2 and even wind in order to replicate all conditions your research may require.

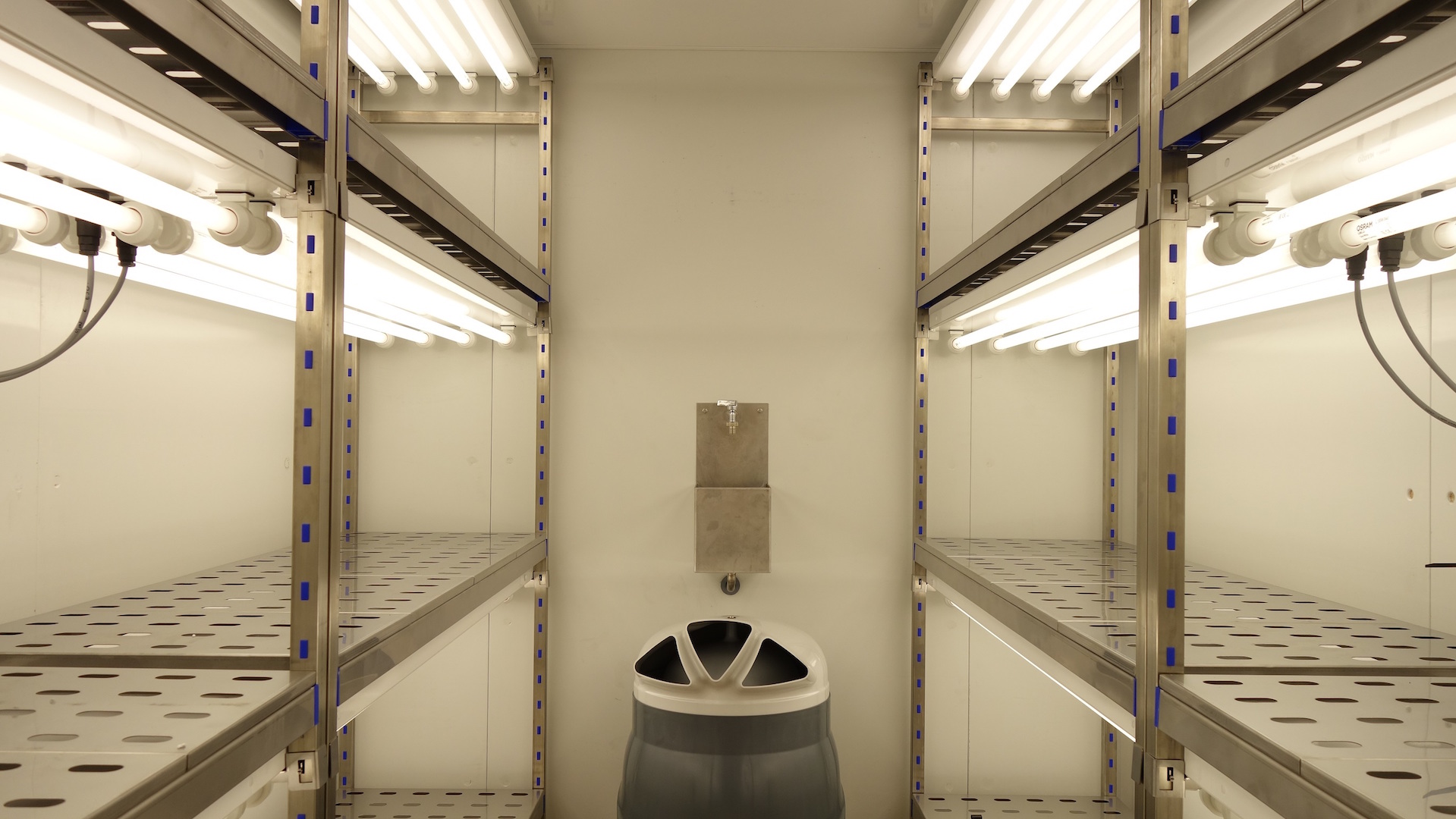

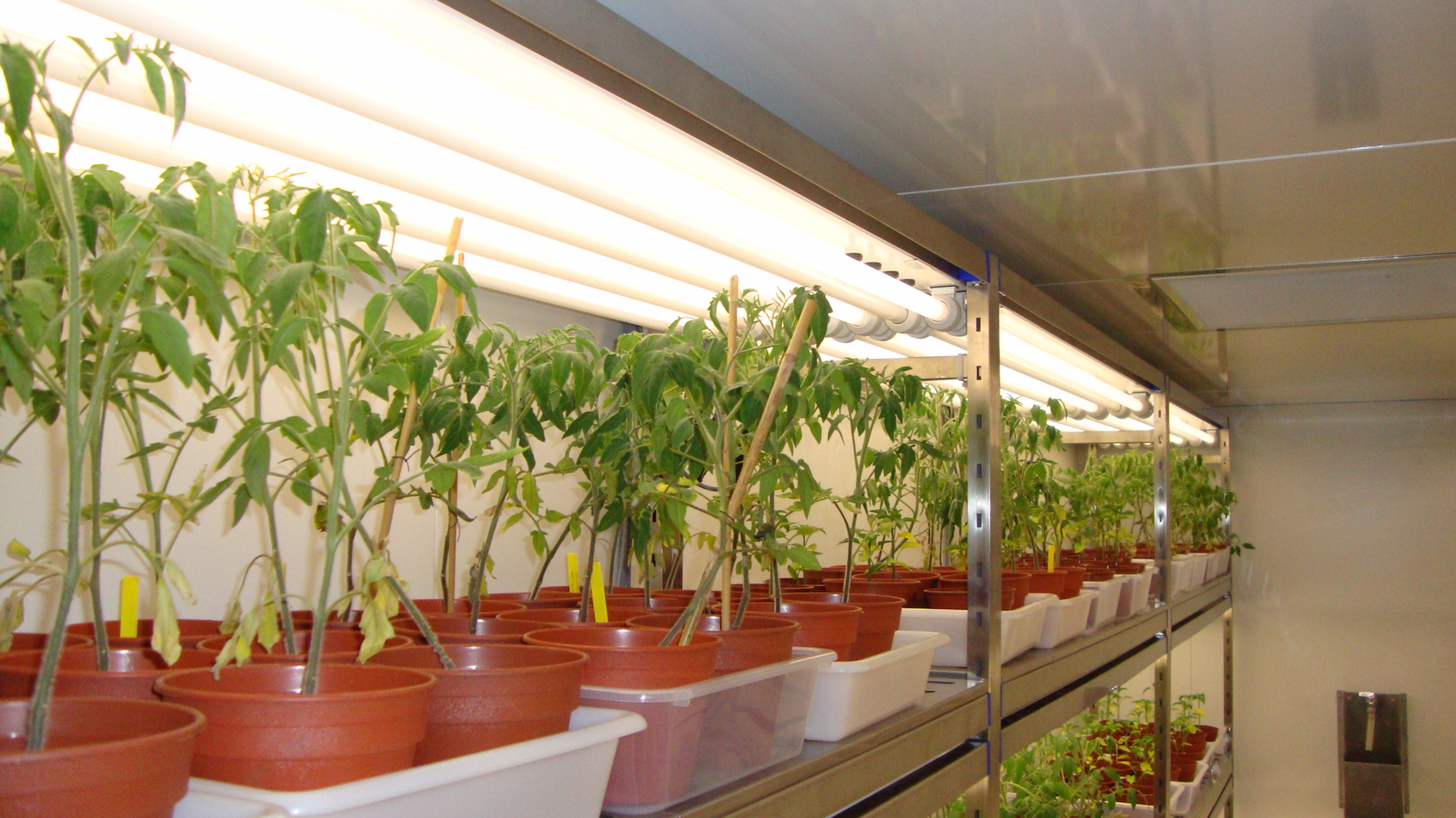

Multi-tier growth modules with height adjustable shelving allow for small to medium plants to grow under the most suitable lighting solution.

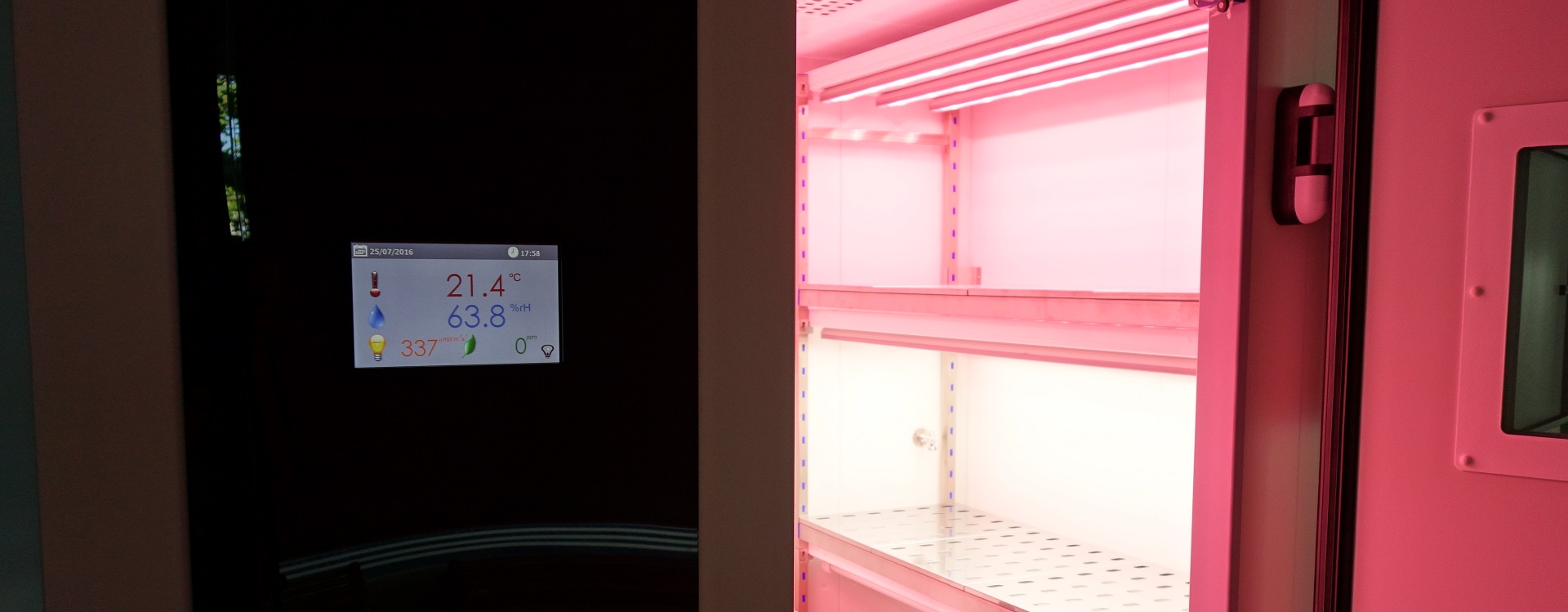

Easily program all conditions with ClimaPlus: a user friendly color touch-screen interface.

Common applications include

Features

  • PLANT GROWTH
  • TISSUE CULTURE/ IN-VITRO
  • ARABIDOPSIS
  • GERMINATION
  • ALGAE RESEARCH
  • ENTOMOLOGY
  • INSECT REARING
  • OTHER LIFE SCIENCES APPLICATIONS
  • Temperature, Humidity, Light intensity and Air Flow
    controlled with consistent precision through the years
  • Adaptive future proof design with easily removable trays
    and height adjustable shelves
  • Lighting options to suite multiple research requirements
    and stages of plant development
  • All environmental conditions easily programmable with
    the new ClimaPlus® multicolour touchscreen interface
  • Stainless steel shelves for maximum resistance, durability
    and easy cleaning
  • Research protection features, with configurable high/low
    temperature and humidity alarms and automatic remote
    notifications

TEMPERATURE AND HUMIDITY WORKING RANGE

Specifications

INTERNAL Dimensions (H x W x D) MULTIPLE DIMENSIONS AVAILABLE
INTERNAL VOLUME (LITRES) MULTIPLE VOLUMES, STARTING AT 5000 LITRES (5M³) UP TO 25000 LITRES (25M³) OR
CUSTOM-DESIGNED GROWTH ROOMS
TEMPERATURE RANGE (ºC) 5 TO 45ºC (LIGHTS ON)
0 TO 45ºC (LIGHTS OFF)
TEMPERATURE STABILITY +/- 0.5ºC
TEMPERATURE UNIFORMITY
+/- 1ºC
HUMIDITY RANGE (% RH) 40 TO 80% RH (LIGHTS ON)
40 TO 90% RH (LIGHTS OFF)
STABILITY +/- 1% RH
UNIFORMITY +/- 2% RH
SHELVES & LIGHTING

GROWTH MODULES WITH 3 HEIGHT ADJUSTABLE SHELVES AND INDEPENDENT LIGHT

CONTROL IN EACH TIER OTHER CONFIGURATIONS ARE POSSIBLE. PLEASE CONSULT US.

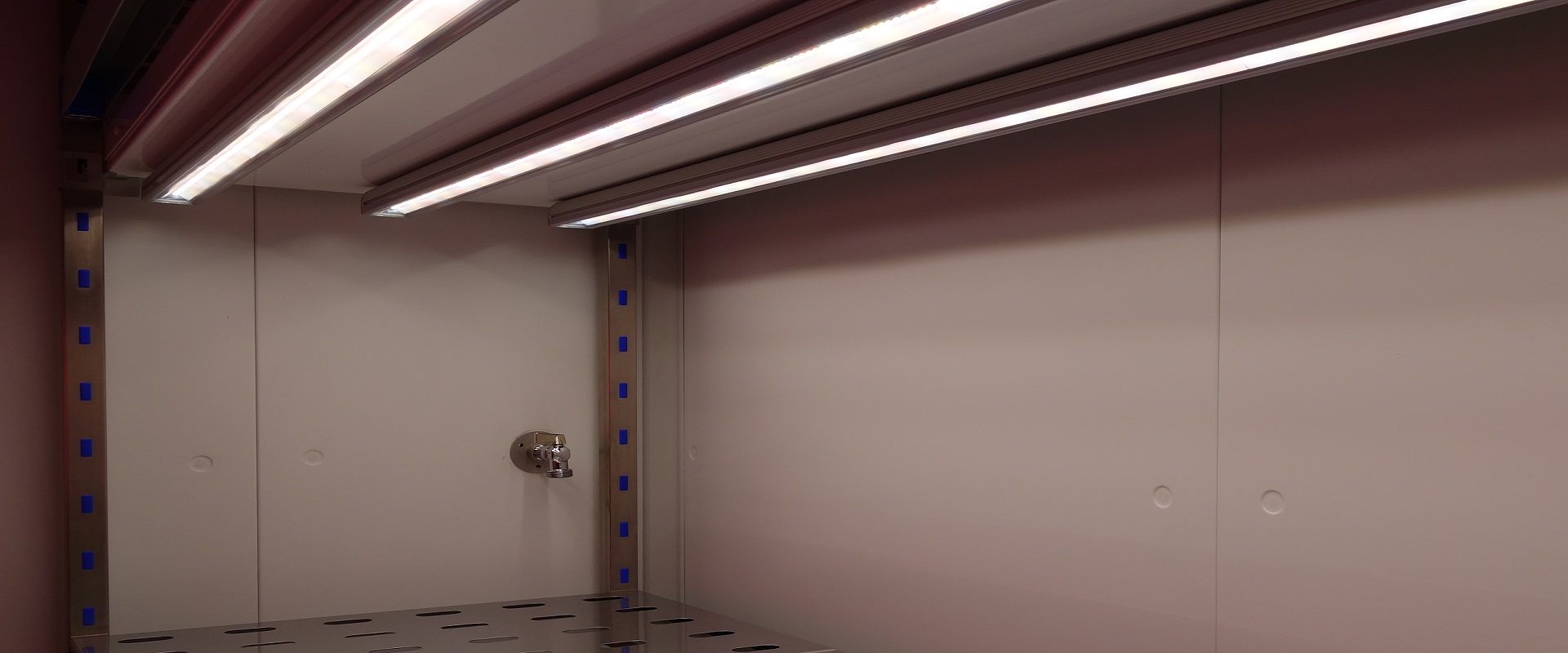

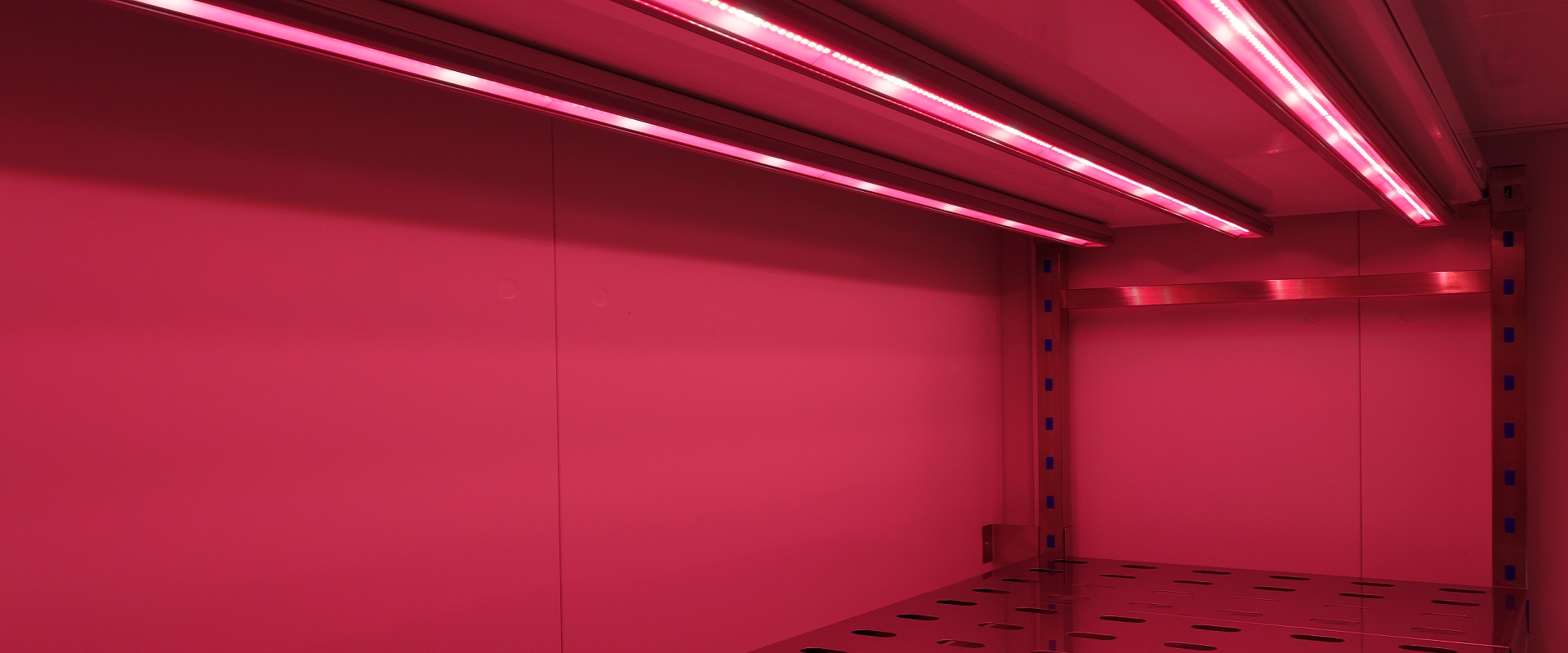

MULTIPLE LIGHTING OPTIONS FROM COOL-WHITE FLUORESCENT TO THE MOST RECENT

LEDS INTENSITIES FROM FROM 275 TO 650 ΜMOL/M2/S PER SHELF.

GROWTH AREA (M²)
0.75M² OR 0.9M² PER SHELF.NUMBER OF SHELVES DEPENDENT ON CHAMBER VOLUME.
OTHER SHELVING CONFIGURATIONS ARE AVAILABLE. PLEASE CONSULT ARALAB.
