Features

FitoClima ‘HP’ walk-in plant growth chambers are specially designed for plant research applications that require medium to high light intensities. Equipped with the latest ‘full spectrum’ dimmable ceramic metal halide lamps that allow for intensities up to 1200 µmol/m2-s (PAR) at 1 meter from light source. Also available in LED.

With total control and great uniformity of environmental conditions, these rooms can recreate temperature, light, humidity, CO2 and even simulate wind in order to replicate all conditions the research may require.

Easily program conditions through ClimaPlus: a user friendly color touch-screen interface.

Common applications include

Features

  • WHEAT
  • CORN
  • RICE
  • COTTON
  • COFFEE
  • CORK
  • LARGE AND TALL PLANTS IN GENERAL
  • PLANTS NEEDING HIGH AND INTENSE LIGHT
  • Temperature, Humidity, Light intensity and Air Flow
    controlled with consistent precision through the years

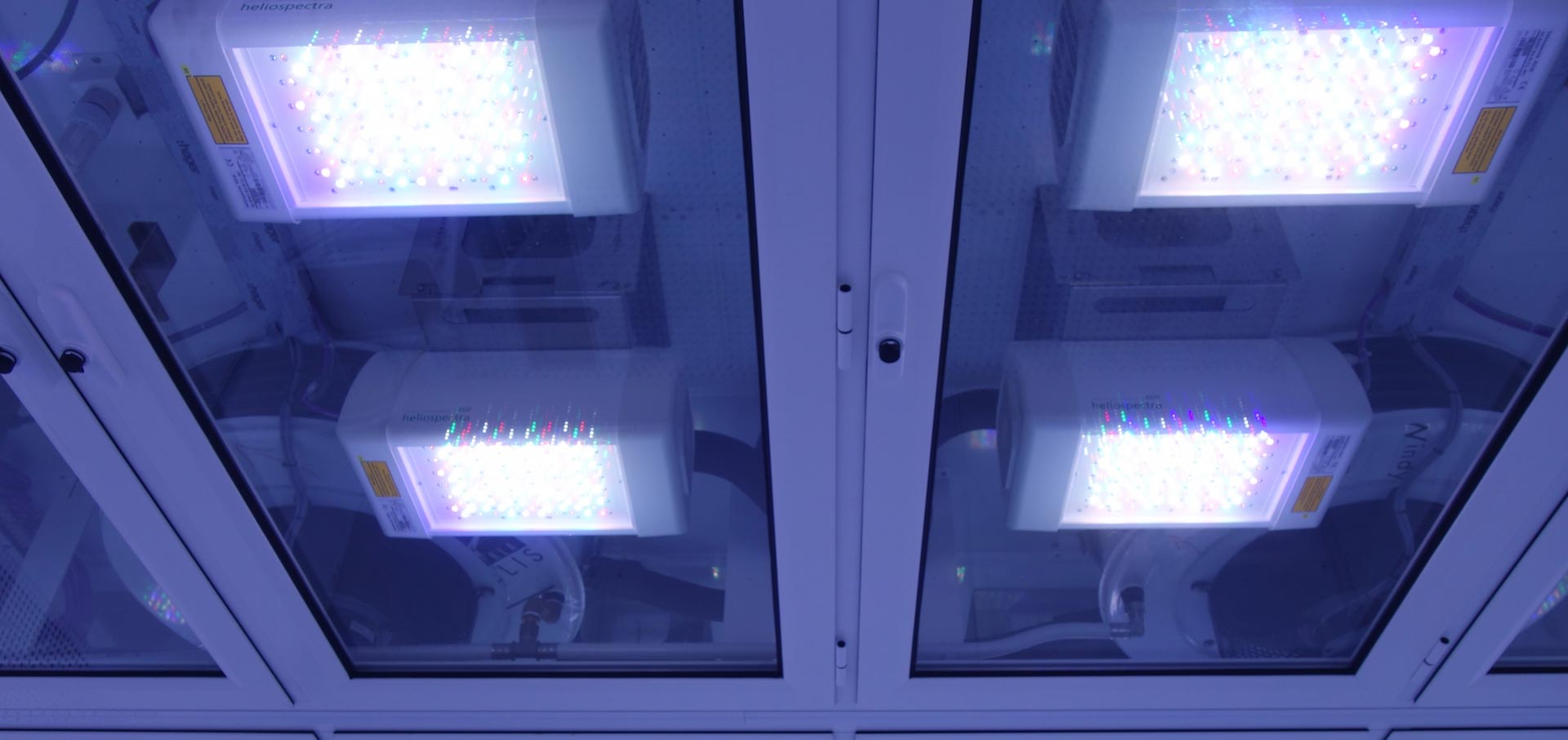

  • Lights located at the ceiling inside a separately cooled
    glass barrier keeping environmental conditions stable inside growth room whilst providing high light intensity
  • Latest generation of ‘full spectrum’ CMH lamps or LEDs,allowing for great energy savings
  • Adaptive future proof design, with easily removable trays
    for optimal height distance from light source
  • All environmental conditions easily programmable with
    the new ClimaPlus® multicolour touchscreen interface
  • Research protection features, with configurable high/low
    temperature and humidity alarms and automatic remote
    notifications

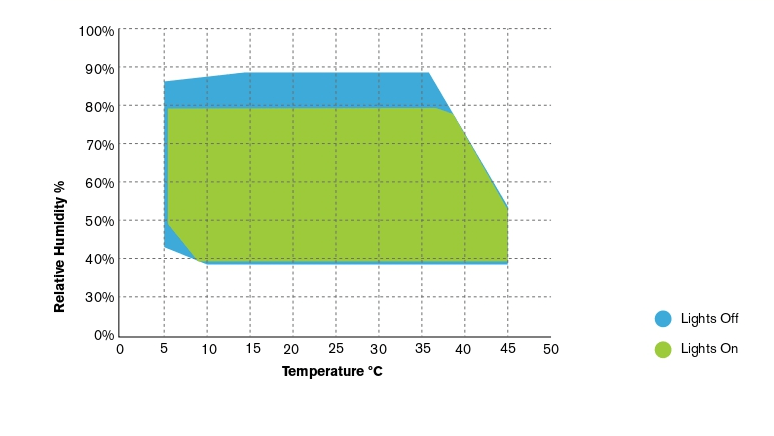

TEMPERATURE AND HUMIDITY WORKING RANGE

Specifications

INTERNAL Dimensions (H x W x D) MULTIPLE DIMENSIONS AVAILABLE
INTERNAL VOLUME (LITRES) MULTIPLE VOLUMES, STARTING AT 10000 LITRES (10M³) UP TO 28000 LITRES (28M³)
OR CUSTOM-DESIGNED GROWTH ROOMS
TEMPERATURE RANGE (ºC) 5 TO 45ºC (LIGHTS ON)
0 TO 45ºC (LIGHTS OFF)
TEMPERATURE STABILITY +/- 0.5ºC
TEMPERATURE UNIFORMITY
+/- 1ºC
HUMIDITY RANGE (% RH) 40 TO 80% RH (LIGHTS ON)
40 TO 90% RH (LIGHTS OFF)
STABILITY +/- 1% RH
UNIFORMITY +/- 2% RH
LIGHTING CMD OR LED LIGHTS WITH SPECTRA OPTIMIZED FOR PLANT GROWTH ALLOWING
UP TO 1100 ΜMOL/M2/S
