CHAMBERS FOR SOLAR MODULES

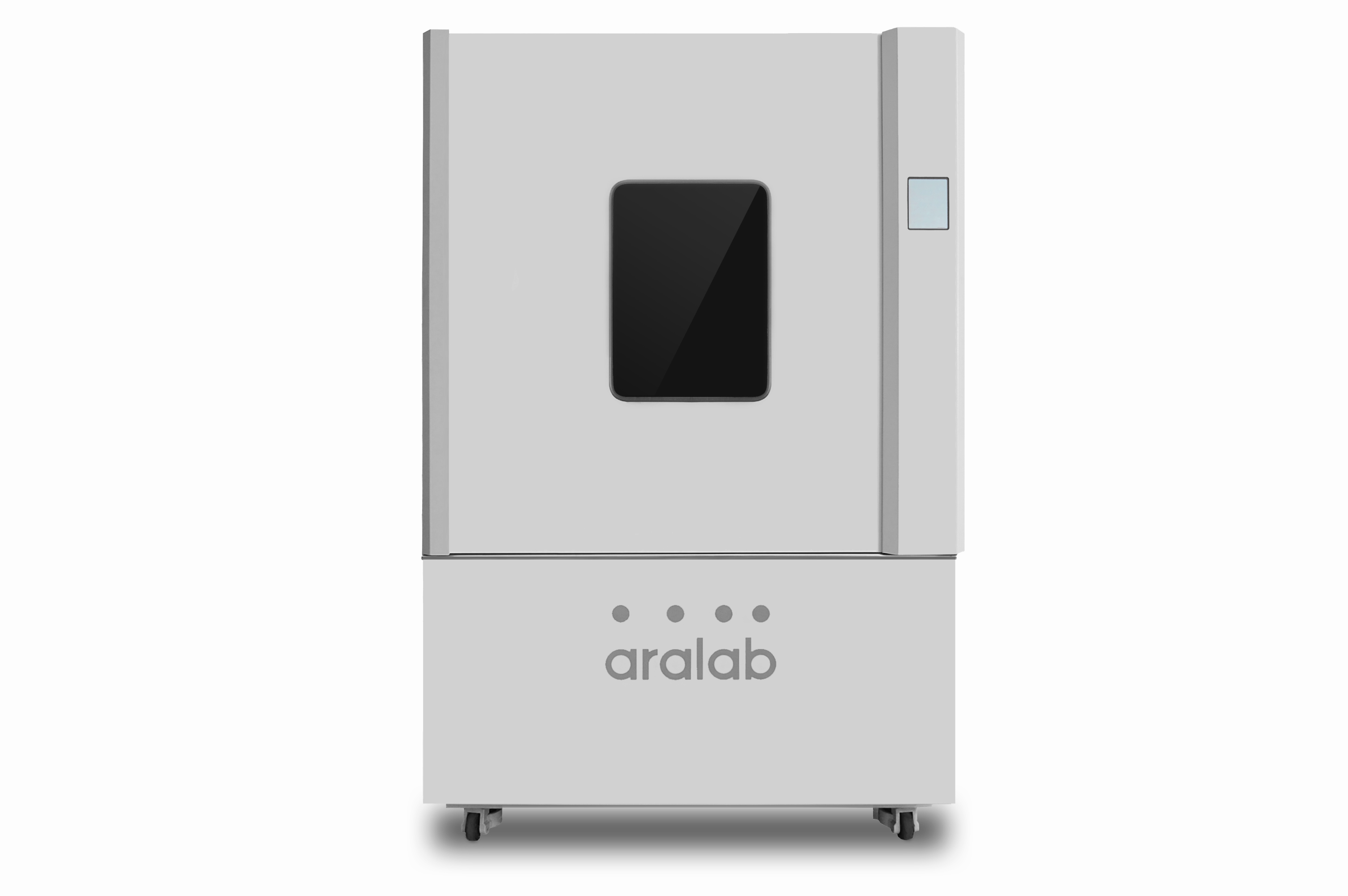

TEMPERATURE AND CLIMATIC CHAMBERS FOR SOLAR MODULES

Range of climatic and thermal chambers designed for solar photovoltaic panels testing. With reliable and homogenous conditions that can guarantee compliance with all international standards
for solar panels testing, IEC 61215 / 61646 / 62108 and EN 12975-1 / 12975-2 (Thermal Cycling Test, Damp-Heat Test and Humidity Freeze Test)
Internal dimensions ranging from 300 liters up to 18.000 liters of test volume.

HIGHLIGHTS

  • Internal aerodynamic optimization to ensure
    uniformity of climatic conditions
  • The most advanced technology in climate control
  • Nonpolluting construction and cooling system
  • Equipped with touch-screen controller CLIMAPLUS
  • Reduced investment, low maintenance, reliable and
    accurate performance
  • Compliant with international standards and
    requirements

Specifications

INTERNAL Dimensions (H x W x D) (MM) MULTIPLE MODELS AVAILABLE
INTERNAL VOLUME FROM 300 UP TO 18000 LITERS
TEMPERATURE RANGE FROM -20, -45 AND -75°C UP TO 180°C
HUMIDITY RANGE (% RH) 10% TO 98% RH
ELECTRICAL CONNECTION
3/N/PE AC 400V 10%; 50HZ
 Compliance  IEC 61215 / 61646 / 62108 and EN 12975-1 / 12975-2 COMPLAINT
