Features

The MIR-554 Cooled Incubator with a capacity 406 liters of is recognized as an exceptional unit suitable for a wide range of applications requiring a -10ºC to +60ºC environment. The wide variety of temperature and lighting patterns that are essential in research, environmental studies and testing can now be accurately reproduced and controlled.

Benefits

Features

  • Programmable with 12 step, 10 program capability.
  • Wide temperature range from -10ºC to +60ºC with excellent uniformity.
  • Multi-purpose for a wide range of applications from the food industry to water treatment and microbiology.
  • Precise Temperature Control For Accurate, Repeatable Conditions.
  • Chamber temperature uniformity ±0.5°C.
  • Energy Saving Operation.
  • Ultimate Secure, Comprehensive Alarm System.
  • Modern Design for Exceptional Usability.
  • Ultimate Security and Sample Safety.
  • High precision microprocessor controller combined with a heater P.I.D. and compressor On-Off system.
  • Wide temperature range settable from -10°C to +60°C with control up to ±0.1°C.
  • Chamber temperature uniformity ±0.5°C.
  • Energy Saving Operation.
  • Intelligent LCD Controller.
  • Automatic Setting Temperature Alarm.
  • Independent Over-temperature Protection Device.
  • Programmed Memory Back-up Mechanism.
  • Automatic Return Buzzer Switch.
  • Key Lock.
  • Trouble Monitor (Self Diagnostic Function).

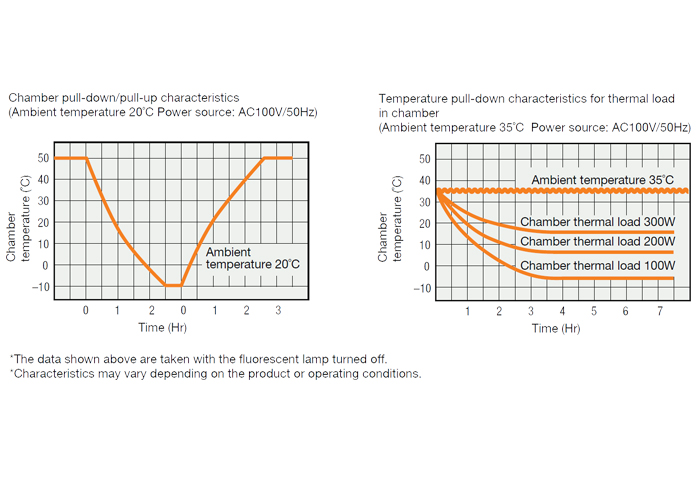

Performance

Specification

External Dimensions (W x D x H)800 x 832 x 1810 mm
Internal Dimensions (W x D x H)640 x 550 x 1160 mm
Volume406 litres
Net Weight195 kg
Temperature Control Range-10°C ~ +60°C (AT +5°C ~ +35°C, no load)
Temperature Fluctuation±0.2 with Heater PID control (SV 50°C, Ambient Temp 20°C, No load), ±1.5 with Compressor control (SV 5°C, Ambient Temp 20°C, No load)
Temperature Uniformity±0.5 (SV 37°C, Ambient Temp 20°C, No load)
ControllerMicroprocessor PID System (ON-OFF control when compressor operates)
DisplayLCD
Temperature SensorThermistor
Cooling MethodForced air circulation
Compressors250 W
Refrigerant
Insulation MaterialPUF
Insulation Thickness80 mm
Exterior MaterialPainted steel
Interior MaterialSS SUS-304
Outer Doors
Outer Door Lock
Reversible Door
Inner Doors
Shelves
Max. Load Per Shelf50 kg
Max. Total Load250 kg
Access Port
Access Port Positionleft and right side
Access Port Diameter40
Interior Fluorescent Lamp1, 15 W, with MIR-L152 option
Power Failure
High TemperatureV-B-R
Low TemperatureV-B-R
Door OpenV-B
Power SupplyLocal
FrequencyLocal
Noise Level45 dB
