STABILITY CHAMBERS

Stability storage chambers for Temperature and Humidity testing applications and according to ICH guidelines. Unsurpassed reliability in recreating and maintaining stable and uniform environmental conditions.

Available with FDA 21 CFR part 11 compliant controller and software for data logging.

IQ, OQ and PQ (Installation Qualification, Operation Qualification and Performance Qualification) for mandatory quality qualifications.

Common applications include

Features

  • PHARMACEUTICALS
  • COSMETICS
  • FOOD AND BEVERAGES
  • VETERINARY
  • STORAGE AND CONSERVATION
  • QUALITY CONTROL AND RESEARCH
  • Ready to use. No assembly needed
  • Minimal footprint for efficient use of laboratory space

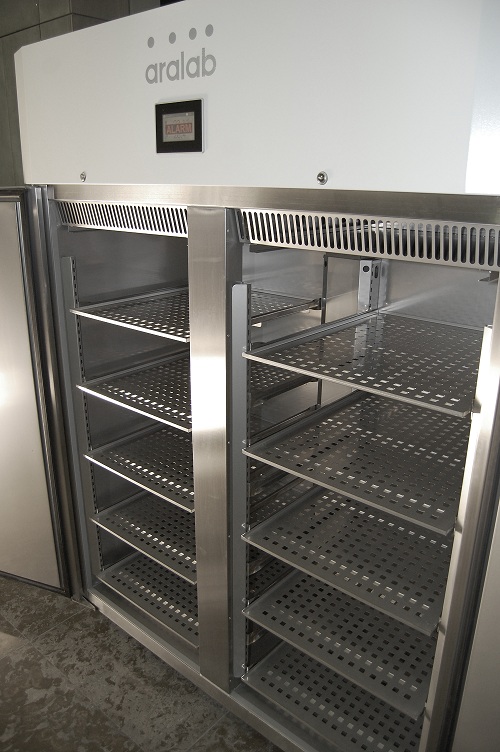

  • Future proof design. The interior can be reconfigured
    at any time for the most efficient use of the available
    storage space and content dimensions
  • Content protection, with configurable high / low
    temperature and humidity alarms and automatic email
    notifications
  • Remote diagnostics, allowing a fast and accurate
    technical support
  • FDA 21 CFR part 11 compliant software
  • Compliant and recognized by ICH, FDA, GMP and other
    leading industry standards

TEMPERATURE AND HUMIDITY WORKING RANGE

Specifications

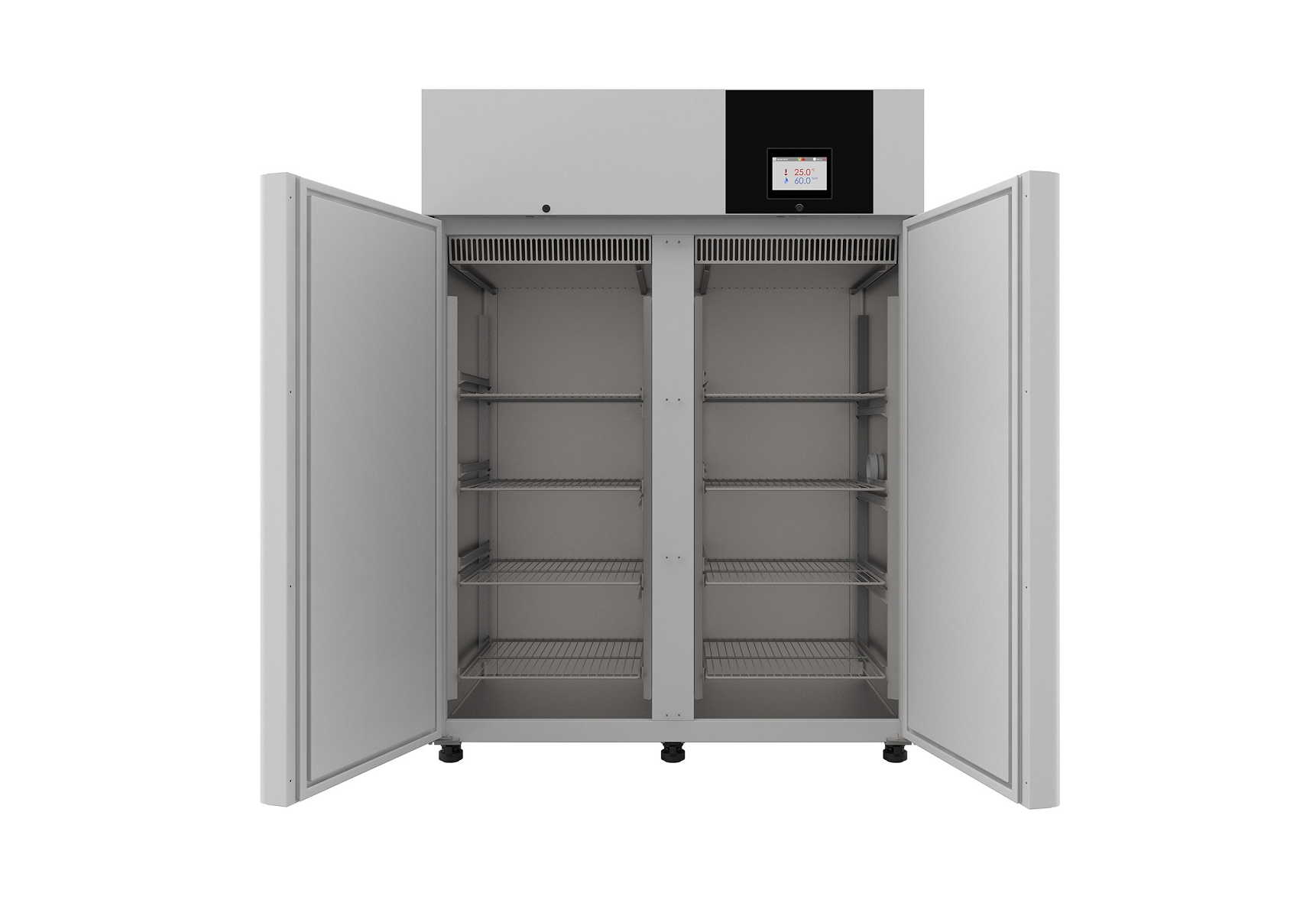

INTERNAL Dimensions (H x W x D) (MM) FITOCLIMA 600: 1340 X 600 X 660
FITOCLIMA 1200: 1340 X 1320 X 660
EXTERIOR DIMENSIONS (H X W X D) (MM) FITOCLIMA 600: 1980 X 730 X 920
FITOCLIMA 1200: 1980 X 1450 X 810
INTERNAL VOLUME (LITRES) 600 OR 1200
TEMPERATURE RANGE (ºC) -5ºC TO 60ºC
TEMPERATURE UNIFORMITY
+/- 1ºC
TEMPERATURE STABILITY +/- 0.5ºC
HUMIDITY RANGE | STABILITY | UNIFORMITY 20 TO 95% RH |  +/- 1% RH | +/- 2% RH
SHELVES 600 MODEL: 4 SHELVES INCLUDED (UP TO 10 POSSIBLE)
1200 MODEL: 8 SHELVES INCLUDED (UP TO 20 POSSIBLE)
SHELVING / STORAGE (M²) 600 MODEL: 4 SHELVES AND 1.3 M² TOTAL
1200 MODEL: 8 SHELVES WITH 2.6 M² TOTAL
ICH COMPLIANCE   ICH Q1A
