Features

The MPR-722 is a Large Capacity Pharmaceutical Refrigerator. Stable and reliable for exacting laboratory requirements. Ideal temperature environment for clinical research, pharmaceutical and industrial use. Adjustable shelves and wide range set point for varying laboratory applications including chromatography and pharmaceutical storage. With a temperature range of 2°C to 23°C, the MPR-722 Pharmaceutical Refrigerator is ideally suited for many tests that require a stable, cool temperature or general cold storage.

Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist laboratory Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.

A filterless condenser cuts down on cleaning maintenance. Also, all glass doors now include a protective film to prevent shattering in the event of accidental collisions.

Benefits

Features

  • Temperature Stability
  • Wide Temperature Range
  • Speedy and Powerful Refrigeration
  • Easy-to-Manage Layout
  • Large Capacity
  • Cycle Defrost
  • A filter less condenser cuts down on cleaning maintenance
  • Standard Alarm and Safety Features
  • HFC Refrigerant & CFC-Free Insulation
  • Large Fans
  • Pull-out drawers
  • Cycle Defrost

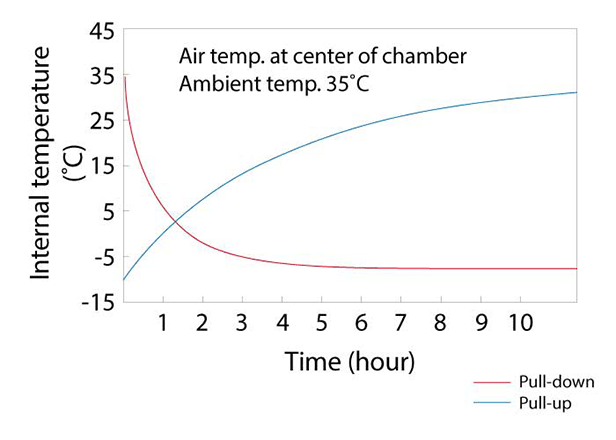

Performance

At 35 C Pull-Down & Pull-Up Temperature)

Specifications

External Dimensions (W x D x H)770 x 830 x 1955 mm
Internal Dimensions (W x D x H)650 x 710 x 1500 mm
Volume684 litres
Net Weight174 kg
Temperature Setting Range+2 to +23 °C
Temperature Control Range+2 to +23 °C
ControllerMicroprocessor
DisplayLED
Temperature SensorThermistor
Cooling MethodForced cool air circulation
Defrost MethodForced type (cycle defrost), fully automatic
Refrigerant HFC & HFO combined (CFC-Free)
Insulation MaterialRigid PUF (CFC-Free)
Exterior MaterialPainted steel
Interior MaterialPainted steel
Outer Doors1 door, double pane glass, self closing
Outer Door LockY
Shelves 4 wire shelves (polyethylenecoated, 565 x 604 mm, adjustable)
Drawers
Max. Load – Per Shelf/Drawer50 kg
Max. Load – Total200 kg
Access Port3
Access Port PositionLeft/right/top
Access Port Diameter30
Casters4
Interior LightFluorescent
Power Failure
High Temperature
Low Temperature
Door Open
Power SupplyLocal
Noise Level41 dB [A]
