PHOTOSTABILITY TESTING CHAMBERS

Environmental Stability chambers for storage and testing according to ICH guidelines with unsurpassed stability and uniformity of climatic conditions.

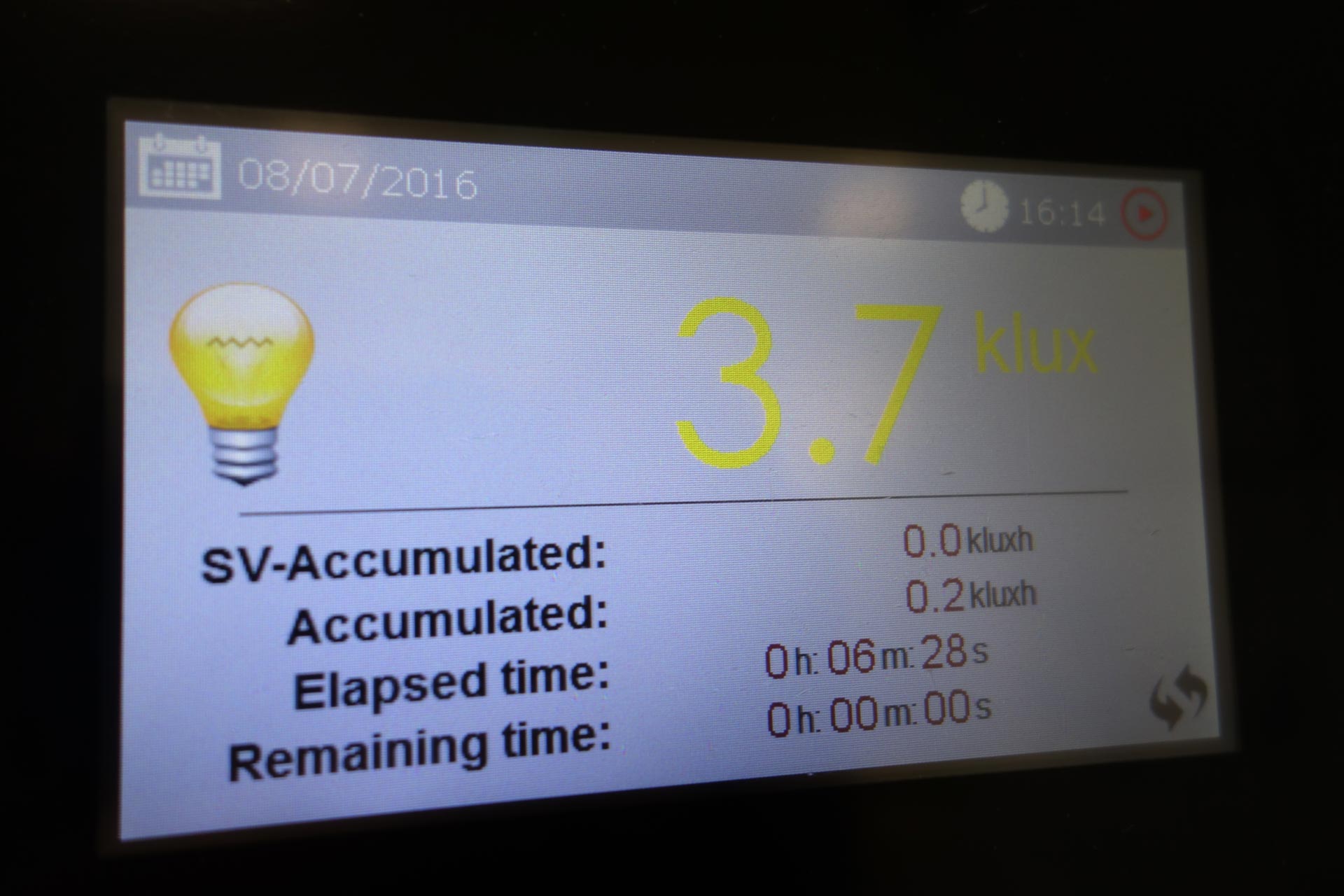

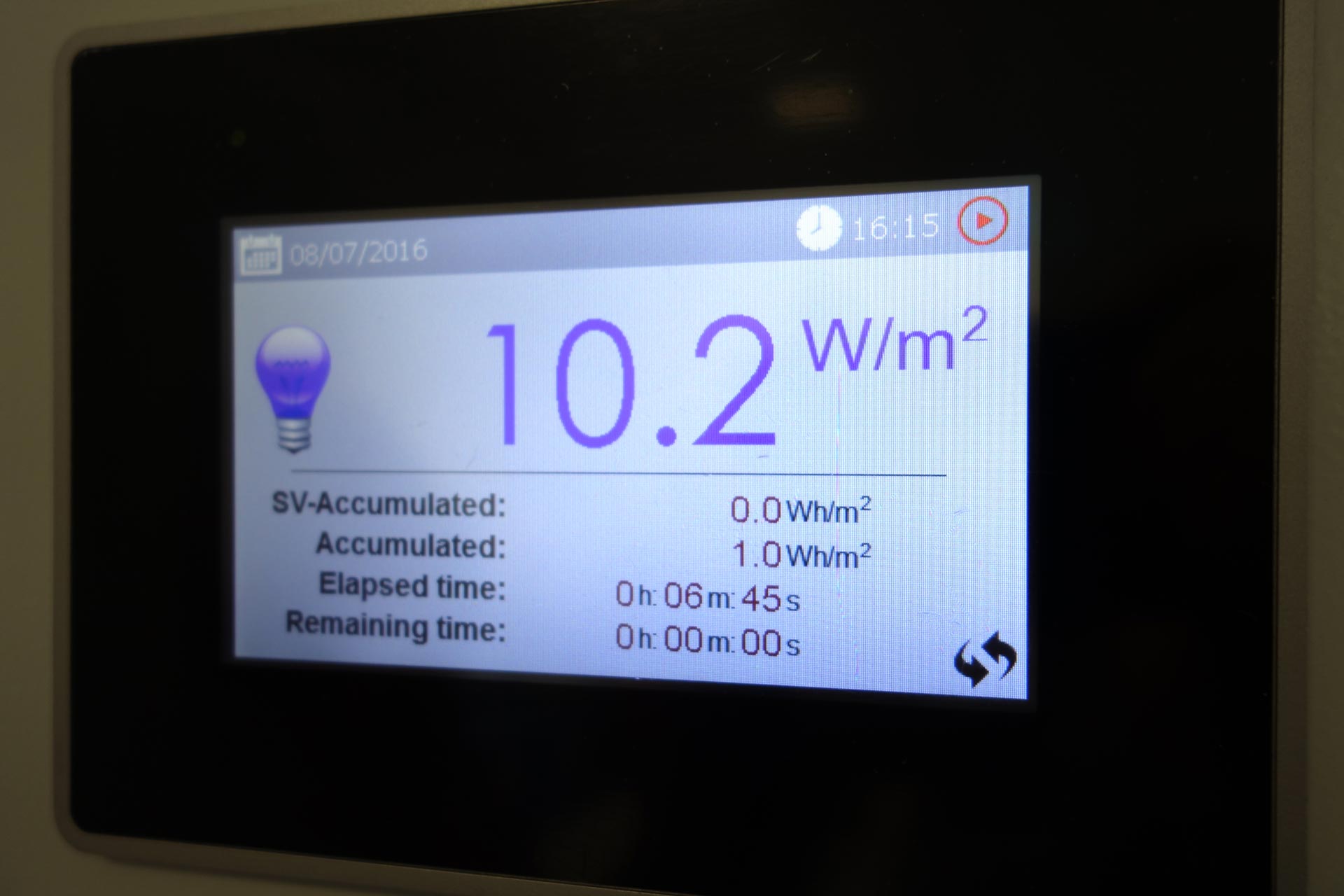

Performs ICH Q1B guidelines tests for photostability in less than 50 hours, with tracking of accumulated UV and Visible light emission and automatic stop function.

Controller and software compliant with FDA 21 CFR part 11 guidelines for data logging. Qualifications IQ, OQ and PQ provided for required quality on-site validations.

Common applications include

Features

  • PHARMACEUTICALS
  • COSMETICS
  • FOOD AND BEVERAGES
  • VETERINARY
  • STORAGE AND CONSERVATION
  • QUALITY CONTROL AND RESEARCH
  • Ready to use. No assembly needed
  • Minimal footprint for efficient use of laboratory space
  • Future proof design. The interior can be reconfigured
    at any time for the most efficient use of the available
    storage space and content dimensions
  • Content protection, with configurable high / low
    temperature and humidity alarms and automatic email
    notifications
  • Remote diagnostics, allowing a fast and accurate
    technical support
  • FDA 21 CFR part 11 compliant software
  • Compliant and recognized by ICH, FDA, GMP and other
    leading industry standards

TEMPERATURE AND HUMIDITY WORKING RANGE

Specifications

INTERNAL Dimensions (H x W x D) (MM)1340 X 600 X 660
EXTERIOR DIMENSIONS (H X W X D) (MM)1980 X 730 X 920
INTERNAL VOLUME (LITRES)600
TEMPERATURE RANGE (ºC)-5ºC TO 45ºC (LIGHTS OFF)
5ºC TO 45ºC (LIGHTS ON);
TEMPERATURE UNIFORMITY+/- 1ºC (LIGHTS OFF)
+/- 2ºC (LIGHTS ON);
HUMIDITY RANGE35 TO 90% RH (LIGHTS OFF)
40 TO 80% (LIGHTS ON)
 UNIFORMITY+/- 2% RH (LIGHTS OFF)
+/- 5% RH (LIGHTS ON);
VISIBLE LIGHT26000 LUX (+/- 6% APPROX.) ICH Q1B VISIBLE LIGHT TEST IN APPROXIMATELY 46H
UV LIGHT30 W/M² (+/- 10% APPROX.) ICH Q1B UV LIGHT TEST IN APPROXIMATELY 7H
ICH COMPLIANCEICH Q1B (PHOTOSTABILITY TESTING)
ICH Q1A (STABILITY TESTING)
    SHELVES AND LIGHTS1 SHELF WITH VISIBLE LIGHTS (0,17M²)
1 SHELF WITH UV LIGHTS (0,17M²)
PHOTOSTABILITY SHELVES AND LIGHT BANKS CAN BE REMOVED AND REPLACED BY MULTIPLE
WIRE SHELVES (OPTIONAL) FOR STABILITY TESTING WITH A GREATER STORAGE AREA
