Features
The MPR-S313 (former KM-RS34A1E) Pharmaceutical Refrigerator is compact but has a large capacity for reliable storage of pharmaceutical and medical supplies. The Medi-Cool lineup of medical refrigerators that are equipped with advanced cooling and electronic technology to provide precise temperature for the ideal preservation of medical supplies.
Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist Pharmaceutical Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.
Environmentally-friendly
CFC-Free
PHCbi refrigerators feature commercially available CFC-free, HFC refrigerants and CFC-free insulation.
RoHS Compliant
On July 1, 2006, the RoHS legislation (EU Directive 2002/95/EU) came into effect. RoHS is the restriction of hazardous substances to reduce the amount of pollution to the environment. Toxic substances in electrical equipment such as lead, cadmium, mercury, chromium 6+, pbb and PBDE, which can do serious harm to the environment, have been banned. The MPR Pharmaceutical Refrigerators are compliant with these regulations.
Benefits
Features
- Superior cooling performance.
- Energy efficient.
- PHCbi refrigerators feature commercially available CFC-free, HFC refrigerants and CFC-free insulation.
- RoHS Compliant.

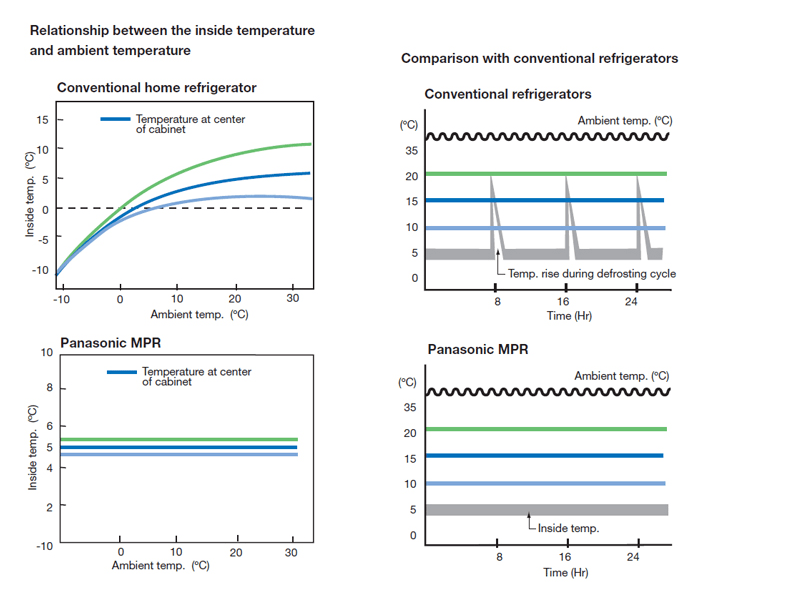

- Uniform Storage Unaffected by Ambient Temperature.
- Effective Temperature Control.
- Space Saving Design.
- Alarm and safety devices
- Ridged wire shelves with zinc plated finish
- Microprocessor temperature control
- Abnormal Temperature Alarm and Safety Devices
- Fan-forced air circulation
- Cycle Defrost System
- Digital Temperature Display
- Door Open Alarm
Performance
Specifications
| External Dimensions (W x D x H) | 800 x 465 x 1800 mm |
|---|---|
| Internal Dimensions (W x D x H) | 720 x 350 x 1435 mm |
| Volume | 340 litres |
| Net Weight | 100 kg |
| Temperature Setting Range | +2 to +14 °C |
| Temperature Control Range | +2 to +14 °C |
| Controller | Microprocessor |
| Display | LED |
| Temperature Sensor | Thermistor |
| Cooling Method | Forced air circulation |
| Defrost Method | Cyclical defrost (plus forced defrost) |
| Refrigerant | |
| Insulation Material | PUF |
| Exterior Material | Painted steel |
| Interior Material | Stainless steel |
| Outer Doors | 4 sliding doors |
| Outer Door Lock | Y |
| Shelves | |
| Drawers | |
| Max. Load – Per Shelf/Drawer | 20 kg |
| Max. Load – Total | 100 kg |
| Access Port | 1 |
| Access Port Position | Back |
| Access Port Diameter | 30 |
| Casters | 2 |
| Interior Light | LED |
| Power Failure | V-B-R (Optional) |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Door Open | V-B |
| Power Supply | Local |
| Noise Level | 40 dB [A] |
