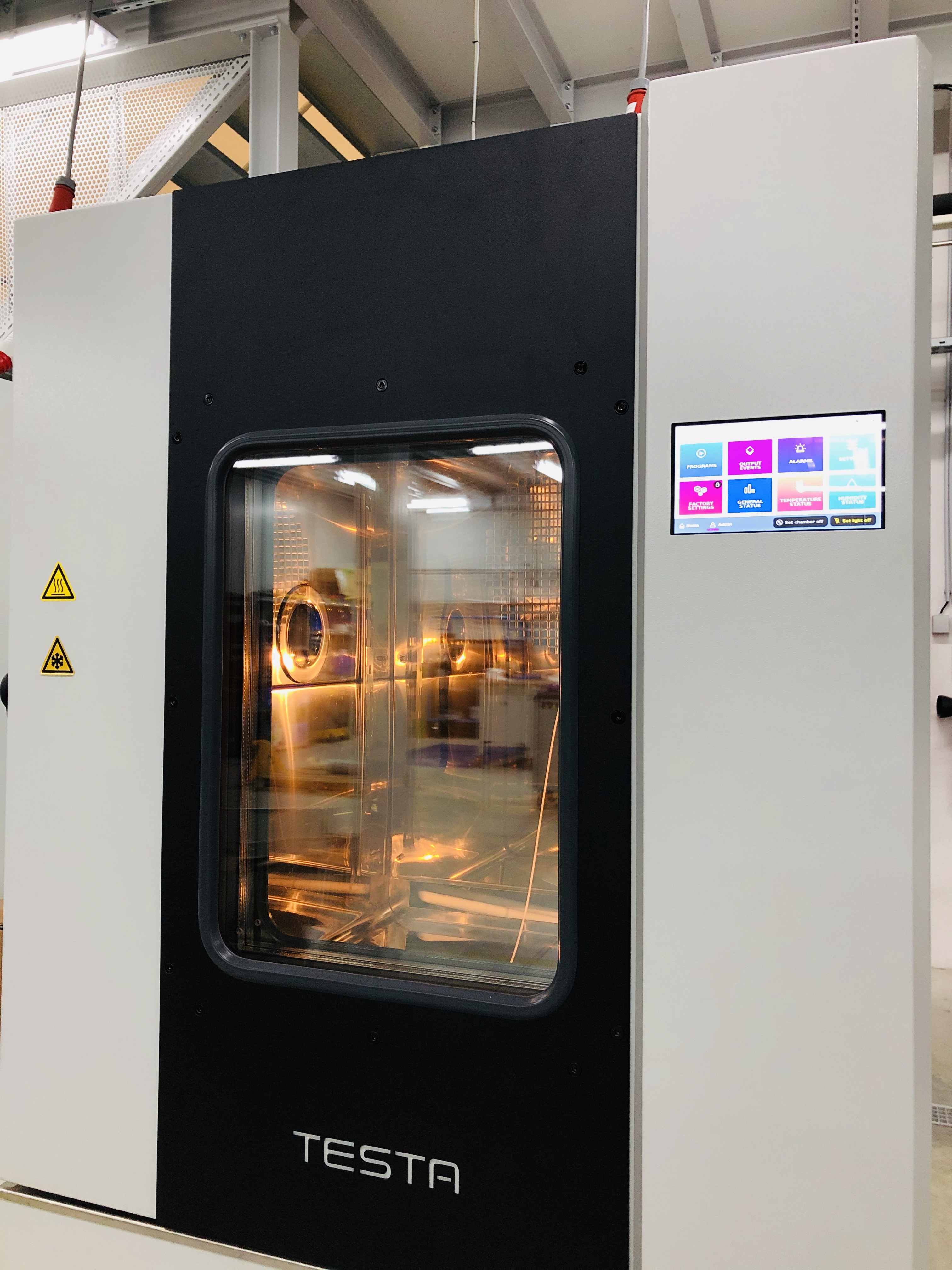

TESTING CHAMBERS

The range of Temperature testing chambers offer the ideal solution for temperature cycle testing, simulation and exposure to heat, aging and stress testing. Ideal for research and development studies, quality control, production facilities and laboratory testing. Temperature changes: from 2° C to 10°C per minute. Easily programmable for different automated testing simulations.

Common applications include

Features

  • ENVIRONMENTAL TESTING
  • ELECTRONICS, AUTOMOTIVE, AEROSPACE
  • BUILDING MATERIALS, MILITARY EQUIPMENT, MATERIALS IN GENERAL RESEARCH
  • QUALITY CONTROL
  • PRODUCTION FACILITIES
  • The most advanced technology in climate control
  • Internal aerodynamic optimisation to ensure uniformity of
    climatic conditions

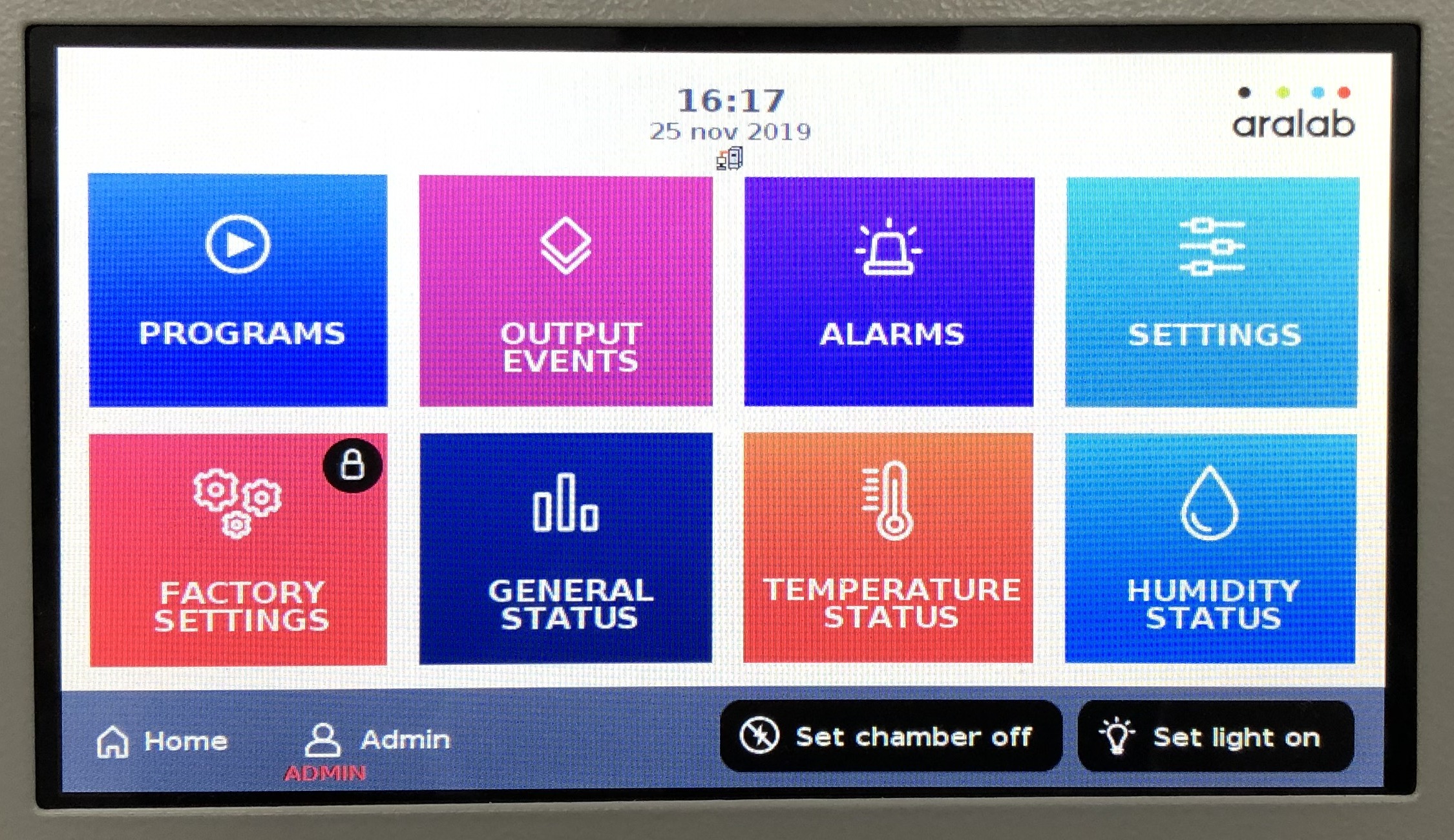

  • Time saving features with easily configurable testing
    programs that can run, start and stop automatically
  • Highly resistant stainless steel interior for maximum
    durability and easy cleaning
  • Flexible interior with height adjustable and removable
    stainless steel shelves
  • Nonpolluting construction and cooling system
  • Compliant with international standards and requirements
    EN, IEC, DIN, ISO, NP and UNE

Specifications

INTERNAL Dimensions (H x W x D) (MM)MULTIPLE MODELS AVAILABLE
INTERNAL VOLUME (LITRES)300, 500, 1000 AND 1500 LITRES OF INTERNAL VOLUME
TEMPERATURE RANGE (ºC)FROM -20, -45 AND -75 UP TO 180°C
TEMPERATURE RANGE (ºC)-5ºC TO 60ºC
TEMPERATURE STABILITY± 0.1ºC TO ± 0.3ºC
TEMPERATURE UNIFORMITY± 0.1ºC TO ± 1.0ºC
HUMIDITY RANGE (% RH)10% TO 98% RH
STABILITY± 0.5% RH TO ± 3% RH
SHELVESTWO HIGHLY RESISTANT STAINLESS STEEL SHELVES INCLUDED
ELECTRICAL CONNECTION3/N/PE AC 400V ± 10% 50HZ
